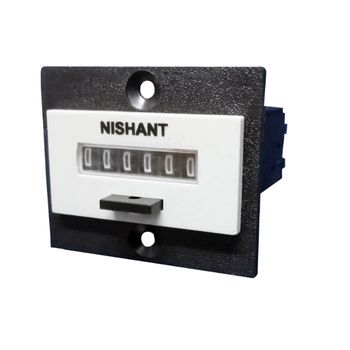

Impulse Counter With Flush Mounting Bracket
Other Details
| Counting Range | 999999 counts |
| Standard Voltage | 12V DC, 24V DC and 230V AC, 110V AC |
| Other Voltage | 12V AC, 24V AC and 230V DC, 110V DC |
| Counting Speed | 20 Imp / sec for DC
10 Imp / sec for AC |
| Mounting | Attractive Flush Mounting Bracket and Socket Assembly |
| Panel Mounting | 60 mm X 50 mm X 90 mm |
| Accessories Panel Cutout | 53 mm X 29.5 mm |

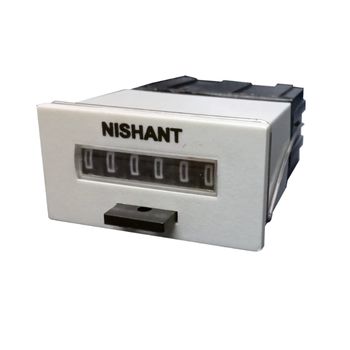

Impulse Counter Without Flush Mounting Bracket
Other Details
| Counting Range | 999999 counts |
| Standard Voltage | 24V DC |
| Coil Resistance | 280 Ohms, ± 5% |
| Counting Speed | 20 CPS max. |
| Panel Mounting | 53mm X 28 mm X 94 mm |
| Accessories Panel Cutout | 50.5 mm X 26 mm |
